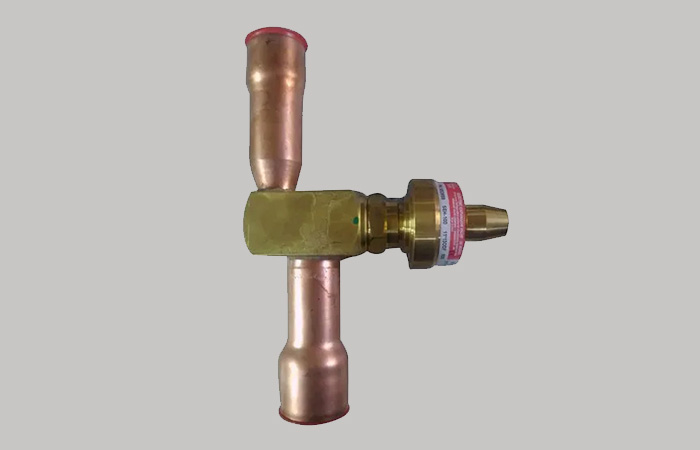

Electric SEH-100 Expansion Valve
| Size | 11x13ODF |
| Model Name/Number | SEH-100 |
| PN | 952668 |
| Compatible Refrigerants | HCFC, HFC, subcritical R744 |
| Compatible Lubricants | All common mineral, polyolester and alkybenzene |
| Maximum Working Pressure | 42 bar |
| Number of Steps | 6386 |
| Operating Temperature Range | -45 to +60 C |
Description
Electric expansion valve-SEH-100-1-3/8"x1-5/8"ODSThe SER, SERI and SEHI are Electronically Operated Step Motor flow control valves, intended for the precise control of liquid refrigerant flow. Synchronized signals to the motor provide discrete angular movement, which translate into precise linear positioning of the valve piston.
